SK616 Mini Portable UPS with 5V 9V 12V15V 24VDC Output Interface USB Port Max 24W 2A Current Output

CCTUNG

  • ¥390.00
税金(包含)。 结账时计算的运费


Free Shipping From CCTUNG

Product Concept and Application:
    Power adapter and mini ups 2 in 1 is anti-surge online power DC transformer = AC to DC mini UPS Adapter (Transformer).it's a DC UPS Adaptor designed to provide emergency power backup to all kinds of DC power equipment such as routers, modems, set-top box, VOIP phone systems, surveillance system, alarm system and many critical telecom equipment. it can provide hours of operation during power failure at a low price of a traditional UPS.

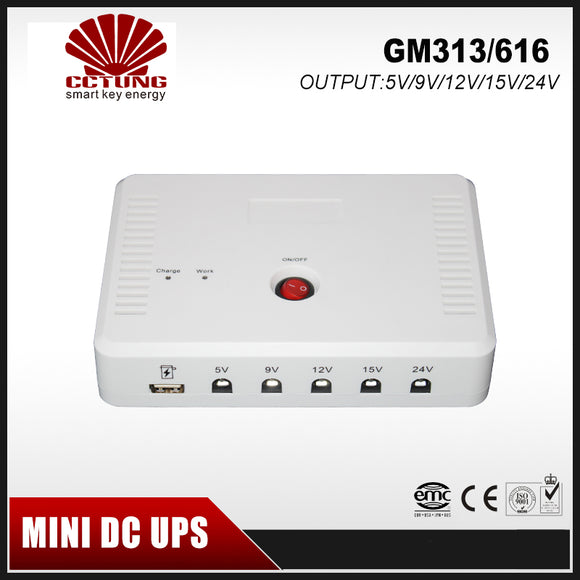

Mini Portable UPS with 5V9V12V15V24VDC Interface & USB Port Max 24W 1A Current Output & 7800mAh Lithium Battery Built-in_1

Mini UPS Application:
Mini ups widely use for fingerprint attendance machine, Fire safety system, security monitoring system, wireless camera, CCTV camera ,personal treatment system,Door security  system, personal data assistant, emergency lighting, Alarm system, personal communication systems, radio, digital cameras, camcorders, video camera,Bluetooth devices,  set-top box, VOIP phone systems, surveillance system, alarm system and many critical telecom equipment.
Mini Portable UPS with 5V9V12V15V24VDC Interface & USB Port Max 24W 1A Current Output & 7800mAh Lithium Battery Built-in_8


Advantages:
It can use to a DC power supply for variety of Network Equipment, Low-Watt computers, Electronic Products, you can have a variety of advantages after using online power transformer.
    1. The anti-surge protection.
    2. Online non-stop Power Supply when electric power is off.
    3. Smaller Size, Lighter Weight, Reduce costs BUT with UPS function.
    4. Anywhere can display your equipment in none electric power environment,
    5. For user in electric power unstable region, they would like to use the product with anti-surge protection.
    6. For user in stable electric power supply region, they would like to continue use product when electric power is off.
    7. The same conditions for on line UPS, we are saving more energy efficient 10%~ 30% than traditional UPS.
Mini Portable UPS with 5V9V12V15V24VDC Interface & USB Port Max 24W 1A Current Output & 7800mAh Lithium Battery Built-in_7



Product Features:
    • Portable

    •With Li battery 7800mAH/15600mAH

    •DC 5v,9v/12v15v/24v selectable

    •With USB port

    •Input Voltage :100V - 240V AC

    •Small DC communication equipment, network peripherals such as: Modem, routers etc.

    •Constant DC output, long backup time, smart chip control, zero transition.


Specification:

Model

SK-313

SK-616

Output Voltage

DC Output 5V/9V/12V/15V/24V

Output power(Max>)

             24 Watt

Built-in battery

2000mAH *3pcs

2000mAH *6pcs

Rated charge current

1A

Rated discharge current

 2A

System voltage

11.1V

Power offer loss

<200uA

Overpressure protection

12.6V

Enhance the charging voltage

12.5V

Undervoltage

11.4V

Over-discharge voltage

10.5V

Operating temperature

-10℃+55℃

Protection circuit

Overcharge protection (system protection)

Overload and short circuit protection (battery protection)

Dimension

159*112*32mm

Weight

0.31KG

0.455KG



NOTE:The specifically system configuration in kind prevail.

Mini Portable UPS with 5V9V12V15V24VDC Interface & USB Port Max 24W 1A Current Output & 7800mAh Lithium Battery Built-in_10

Mini Portable UPS with 5V9V12V15V24VDC Interface & USB Port Max 24W 1A Current Output & 7800mAh Lithium Battery Built-in_11

Mini Portable UPS with 5V9V12V15V24VDC Interface & USB Port Max 24W 1A Current Output & 7800mAh Lithium Battery Built-in_9



Attention:

1.Please pay attention to the direction of battery while installing.
2.The UPS is not waterproof,please use it indoors.If you need to use it outdoor,please take waterproof measures .
3.For safety,please use qualified batteries, do not throw the UPS into water or fire,do not try to open and modify it.
4.Please charge it in time when low battery.
5.If long time did not use this mini UPS, suggest 3~5months to charge it once.
After Sales Service Conluding Free Shipping, Tax, Returning and Payment  Policy from CCTUNG
